Introduction

Liquid nitrogen is an essential resource across various sectors for cooling, preservation, and inerting purposes. Thus, in the context of modern manufacturing systems industrial nitrogen generation is a significant part.

Gone are the days, when companies relied solely on outside vendors. They instead install on-site cryogenic plants. These systems also provide stability supply, lower cost and improved efficiency.

Due to increasing demand, industrial nitrogen production continues to flourish worldwide.

What is Industrial Liquid Nitrogen Production

Industrial liquid nitrogen production involves large-scale liquefaction of nitrogen accompanied with cryogenic air separation technology.

Nitrogen is extracted from atmospheric air by the system. Afterwards, it cools nitrogen to around −196°C, turning it into liquid.

Air contains about 78% nitrogen. This is how industrial systems are able to extract and purify nitrogen for liquefaction.

l Liquid Nitrogen Plant

l Cryogenic Air Separation Plant

l Air Separation Unit

l Cryogenic Air Separation Equipment

Why Industries Need Liquid Nitrogen

Liquid nitrogen is commonly used throughout a number of different industrial processes.

First, it delivers ultra-low temperature thermal management.

Plus, it also protects against oxidation in manufacturing.

Moreover, it also supports bioprocess.

It also aids in enhancing production efficiency of many sectors

So, the industrial production of liquid nitrogen guarantees a constant resource and operational stability.

Industrial Liquid Nitrogen Production Process

The main steps of the industrial production process of liquid nitrogen are

Step 1. Air Intake

The atmosphere air is drawn through intake filters in the system.

Large particles are removed to protect equipment.

Step 2. Air Compression

The air compressor increases pressure.

Higher pressure improves cryogenic efficiency.

Today, modern compressors can cut energy use.

Step 3. Air Purification

The purification system removes:

l Moisture

l Carbon dioxide

l Oil vapor

l Hydrocarbons

l Dust

Hence, there is no ice formation in cryogenic equipment.

Step 4. Heat Exchange

Plate-fin heat exchangers allow purified air to enter them.

Cool air by the reintroduction of cold return fuel.

It therefore recovers refrigeration energy from the system.

Consequently, power consumption decreases.

Step 5. Cryogenic Separation

Air enters the distillation column.

Inside the column:

l Nitrogen rises

l Oxygen settles

l Argon remains in the middle

Thus, gases are separated continuously.

Step 6. Nitrogen Liquefaction

Nitrogen is cooled to -196°C.

Then, it becomes liquid nitrogen.

Then it is stored in insulated tanks.

This bodes completed producing of modern gaseous nitrogen.

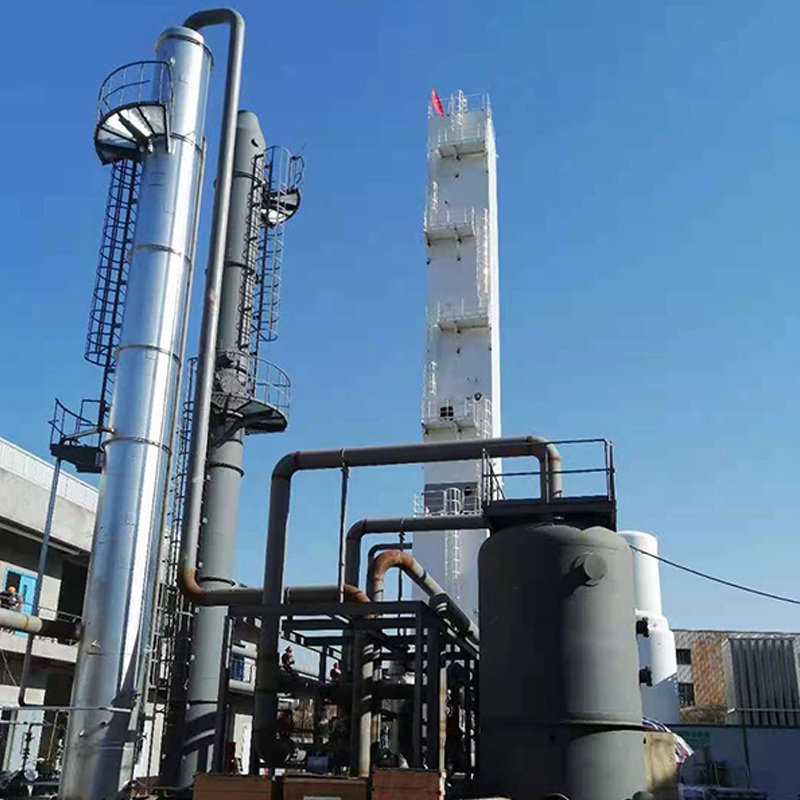

Key Equipment Found in Industrial LN2 Facilities

A proper system consists of several major items, more likely.

Air Compressor

Delivers compressed air for the completions process.

Therefore, it determines production capacity.

Air Purification Unit

Cleans impurities and shields cryogenics.

Heat Exchanger

Improves energy recovery efficiency.

Moreover, it reduces operational cost.

Expansion Turbine

Generates refrigeration by pressure reduction.

Therefore, nitrogen reaches liquefaction temperature.

Cryogenic Distillation Column

Separates nitrogen, oxygen, and argon.

This is why it serves as the backbone of the system.

Liquid Nitrogen Storage Tank

Stores safe LN2 with low loss by evaporation.

l Cryogenic Air Separation Equipment

l Liquid Oxygen Plant

l LCO2 Storage Tank

l Industrial Gas Plant

Cryogenic Air Separation Technology

Industrial nitrogen production relies on cryogenic technology.

Compared to the other methods, it gives:

l Very high purity nitrogen

l Continuous production

l Large-scale capacity

l Oxygen co-production

l High long-term efficiency

As a result, most industrial systems use cryogenic air separation.

Efficiency Factors in Industrial Production

Several factors affect plant performance.

Air Quality

Clean air improves stability.

Compressor Performance

Efficient compressors reduce energy cost.

Heat Exchange Efficiency

Better recovery improves system performance.

Column Design

Optimized columns improve separation quality.

Automation System

PLC control improves reliability.

Thus, production cost and output are directly impacted by the quality of the system.

Applications of Industrial Liquid Nitrogen

Industrial production of liquid nitrogen supports various sectors.

Food Industry

Utilized for fast freezing and preservation.

Healthcare

Used for biological sample storage.

Pharmaceuticals

Utilized in the storage of vaccines and medicine.

Electronics

Used for cooling precision components.

Chemical Industry

Used for inert gas protection.

Metal Industry

For shrink fitting and treatment.

Research Laboratories

Used for cryogenic experiments.

l PSA Nitrogen Generator

l Nitrogen Plant Manufacturer

l Industrial Oxygen Plant

Cryogenic Plant vs PSA Nitrogen System

How to Select an Industrial LN2 Plant

Several factors should be considered.

First, determine daily nitrogen demand.

Next, define purity requirements.

Moreover, evaluate installation space.

Furthermore, compare energy consumption.

Lastly, select a reputable manufacturer with engineering knowledge.

Professional suppliers also offer installation, commissioning and training.

Why Choose Nanjing Bangwin Gas

With a focus on cryogenic systems and industrial gas, Nanjing Bangwin Gas

Official Website:

https://bangwingas.com/

The company provides:

l Liquid Nitrogen Plant

l Cryogenic Air Separation Plant

l Air Separation Unit

l PSA Nitrogen Generator

l PSA Oxygen Generator

l VPSA Oxygen Plant

l Industrial Oxygen Plant

l Cryogenic Air Separation Equipment

Moreover, the company offers:

l Customized engineering design

l Energy-efficient systems

l Turnkey project support

l Global technical service

Thus, customers get reliable and economical industrial gas solutions.

For storage systems:

https://bangwingascylinder.com/

FAQ

1. What is industrial liquid nitrogen production?

It is the large-scale production of liquid nitrogen using cryogenic air separation and liquefaction technology.

2. What temperature is required to produce liquid nitrogen?

Nitrogen liquefies at approximately -196°C.

3. What industries use industrial liquid nitrogen?

Food, healthcare, pharmaceuticals, electronics, chemicals, and metallurgy.

4. What is the best technology for industrial nitrogen production?

Cryogenic air separation is best for large-scale liquid nitrogen production.

5. Who supplies industrial nitrogen plants?

Nanjing Bangwin Gas provides customized industrial gas production systems worldwide.

Conclusion

Industrial liquid nitrogen production, which can provide steady and high-purity nitrogen for classical industries, is an important foundation technology.

In addition, cryogenic systems enable a high benefit, considerable capacity and cost-effective long-term processes. So they continue to be the go-to solution for industrial applications.

Nanjing Bangwin Gas provides advanced cryogenic systems, customizing design & global technical support for engineering solutions.

To know more about the industrial gas solution, head to bangwingas.com
